SCANS: A Soft Gripper with Curvature and Spectroscopy Sensors for In-Hand Material Differentiation

SCANS: A Soft Gripper with Curvature and Spectroscopy Sensors for In-Hand Material Differentiation

Nathaniel Hanson1,2*, Austin Allison1*, Charles DiMarzio1, Taşkın Padır1,3, Kristen L. Dorsey1

1Northeastern University, 2MIT Lincoln Laboratory, 3Amazon Robotics

∗These authors contributed equally

Correspondence: nhanson2 [@] mit [.] edu

Abstract

We introduce the soft curvature and spectroscopy (SCANS) system: a versatile, electronics-free, fluidically actuated soft manipulator capable of assessing the spectral properties of objects either in hand or through pre-touch caging. This platform offers a wider spectral sensing capability than previous soft robotic counterparts. We perform a material analysis to explore optimal soft substrates for spectral sensing, and evaluate both pre-touch and in-hand performance. Experiments demonstrate explainable, statistical separation across diverse object classes and sizes (metal, wood, plastic, organic, paper, foam), with large spectral angle differences between items. Through linear discriminant analysis, we show that sensitivity in the near-infrared wavelengths is critical to distinguishing visually similar objects. These capabilities advance the potential of optics as a multi-functional sensory modality for soft robots.

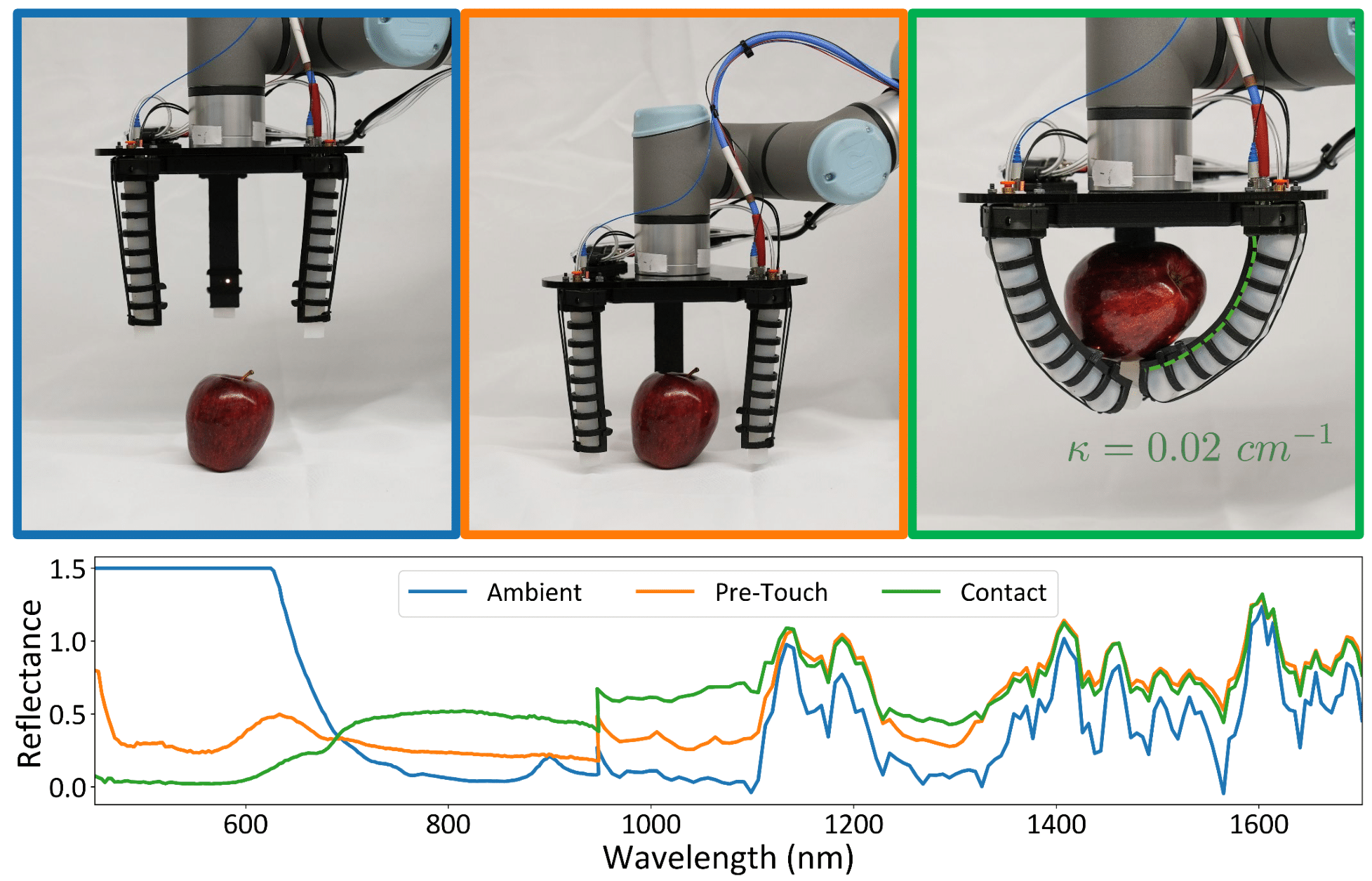

SCANS Overview
SCANS Overview

ArXiv

IEEE Xplore Coming Soon

Bibtex

@misc{hanson2025scanssoftgrippercurvature,
      title={SCANS: A Soft Gripper with Curvature and Spectroscopy Sensors for In-Hand Material Differentiation},
      author={Nathaniel Hanson and Austin Allison and Charles DiMarzio and Taşkın Padır and Kristen L. Dorsey},
      year={2025},
      eprint={2510.02164},
      archivePrefix={arXiv},
      primaryClass={cs.RO},
      url={https://arxiv.org/abs/2510.02164},
}
